CLASSICMARKER
Road Marking Studs Made of Plastic with Resistant Special-Purpose Glass Elements
-
INTRODUCTION
International studies have shown that CLASSICMARKER marking studs are ideal for making the course of the road visible in darkness and bad weather, and for making them perceptible and audible when traversing. When visibility is poor, CLASSICMARKER studs ensure greater recognition of the course of the road. With two lateral recessed grips, the new product designs enable even easier handling and faster installation.
-
APPLICATION AREAS
+ Roads
+ Tunnels
+ Parking Lots
+ Parking Garages
+ Internal and External Areas of Industrial Sites
-
HIGHLIGHTS
+ Road marking studs with plastic body
+ Resistant special-purpose glass elements: reflective on one side or on both
sides
+ Self-cleaning by rain and overrunning car tires
+ Consistently high reflectivity
+ Easy to use and assemble
PRODUCT DESIGN
COLOR COMBINATIONS STANDARD
PRODUCT DESIGN

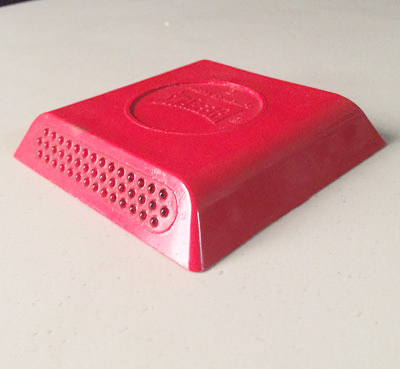

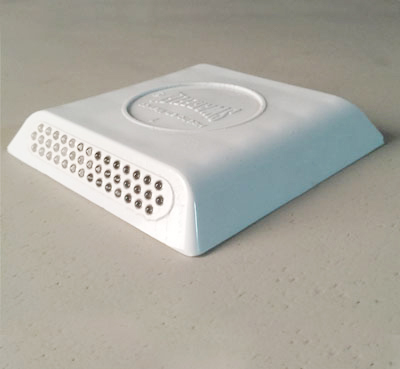

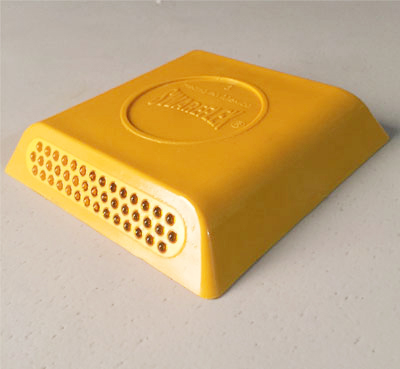

CITYSTUDS
Anchor
MEGASTAR
5001
5003
5005
5002
5004
5006
220 x 100 x 40 mm
Length of anchor bolts: 64 mm
220 x 150 x 25 mm
Permanent use, ideal as a boundary marker for curb stones and demarcation of bus and taxi lanes
Permanent use, ideal as speed humps for traffic calming
179 per side
128 per side
(Special colors on request)
(Special colors on request)
Plastic
(Special colors on request)
(Special colors on request)
EN 1463 -1
Reflectivity values according to ASTM D4280
EN 1463 -1
Reflectivity values according to ASTM D4280
Installation with two-component adhesive
Installation with anchor bolt
nstallation with two-component adhesive
(Both on concrete and asphalt)
Excellent night visibility
Self-cleaning of special-purpose glass elements by overrunning tires
GLOBEMARKER Classic 19º
GLOBEMARKER Economy 19º
GLOBEMARKER small 19º
3551
3541
3555
3552
3542
3566
100 x 100 x 17.9 mm
100 x 100 x 17.9 mm
120 x 60 x 15.5 mm
Permanent use
45 per side (19º tilted)
29 por side (19º tilted)
39 per side (19º tilted)
(See table of color combinations)
EN 1463 - 1
EN 1463 -2
Reflectivity values according to ASTM D4280
EN 1463 -1
EN 1463
Reflectivity values according to ASTM D4280
Installation with two-component adhesive
(Minimal adhesive use because of newly designed bottom)
Glass panels tilted at 19° for better reflection effect over large distances
Recessed grip for easy handling
Self-cleaning of special-purpose glass elements by overrunning tires
The certified SwaroGlobemarker achieved highest classification of "S1" and "R1" acc. to EN 1463-2
BSI certified
GLOBALMARKER
Further color combinations on request
CITYSTUDS
GLOBEMARKER
Road marking stud with plastic body for permanent use
Universal road marking stud in various designs for permanent use
MEGASTAR
Road marking stud with plastic body for permanent use
