SWAROLINE

Intelligent Guidance Systems

  • INTRODUCTION

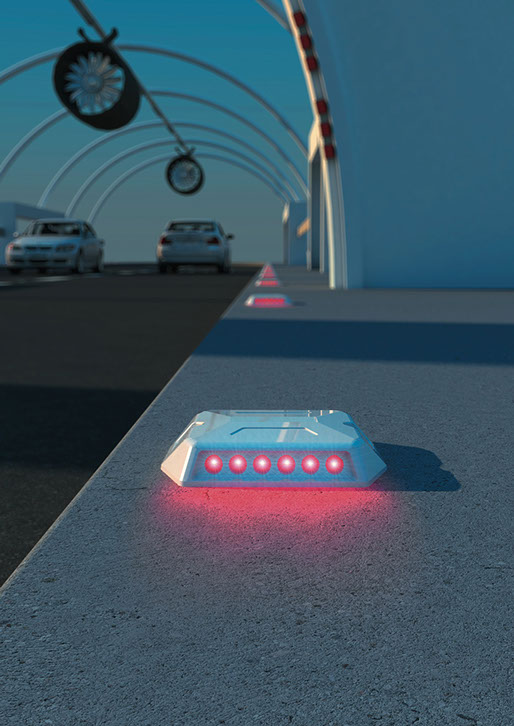

    The usage of SWAROLINE improves guidance in tunnels, on roads and in the outside and inside areas of industrial facilities. This visual guidance product consists of light-emitting modules installed along the pathway; and one or more associated control units to control and to monitor these light-emitting modules and to connect this system to the tunnel operation center. The light-emitting modules are linked to the control units either via a cable connection (wired) or by an inductive coupling. The control unit controls the brightness of the LEDs and the operational mode, e.g. flashing or running light.

  • APPLICATION AREAS

    + Road Tunnels

    + Highways

    + Country Roads

    + Parking Lots

    + Parking Garages

    + Industrial Sites

    + Stadiums

    + Airports

  • HIGHLIGHTS

     + Power and control data transmission either wired or inductive

     + Light-emitting Modules: multi-color LEDs with flexible and nearly unbreakable soft

       glass protection screen, T-connection to increase reliability, individually adjustable

       (SWAROLINE XP and SWAROLINE iXP), either one way or two way functional

     + Control Unit: adjustment of brightness and other functions and monitoring of the

       light-emitting modules (such as flashing and running light)

     + Lowest energy consumption

     + Low maintenance, reliable, robust, durable

     + Suitable for machine cleaning

LIGHTING MODULES

FUNCTIONS OVERVIEW

PRODUCT DESIGN

SWAROLINE

Module 100

SWAROLINE Module 100 ILP

SWAROLINE Module 100 IHP

SWAROLINE Module 100 XP

8161

8162

100x 105 x 109 mm

SWAROLINE Module 100 iXP

8181 ILP

8182 ILP

8181 IHP

8182 IHP

8165 XP

8166 XP

8181 iX

P8182 iXP

6  LEDs per side



Plastic (white)

Flame retardant

Tested according to UL 94 V0

(Special colors on request)

180 g

200g

200 g

200 g

200 g

15 metric tons

24 V DC

Inductive supply

Inductive supply

48 V DC

Inductive supply



3.0(120mA)Max.urrent of the induction coupler





Max. 2.0W







0.6 W (25 mA)



0.3 W (12 mA)



1.2 W (50 mA)



0.9 W (37 mA)



0.6 W (25 mA)



0.5W Not relevant for calculation of the overall system





4.0W max.  power of the induction coupler





>100 cd

>  35 cd

>  35 cd

>  35 cd

 >  35 cd

~ 100,00  hours

acc. to manufacturer's data

+/- 7.5 °

IP 68 (sealed electronics)

T-Connection or serial connection

Screws or

2-component adhesives

LEDs protected against chemical and mechanical impacts by soft glass

SWAROLINE

Módulo 220

SWAROLINE Módulo 220 ILP

SWAROLINE Módulo 200 XP

SWAROLINE Módulo 220 iXP

8151

8171 ILP

8171 XP

8171 IXP

8152

8172 ILP

8172 XP

8172 IXP

220 x 100 x 40 mm

6 LEDs per side



Plastic (white)

Flame retardant

Tested according to UL 94 V0

(Special colors on request)

520g

800g

10 metric tons

24 V DC

Inductive supply

24 V DC

Inductive supply



3.0W (120mA)



4.0W max.

power of the induction

coupler



0.6 W (25 mA)



0.3 W (12 mA)



Max. 2.0 W



1.2 W (50 mA)



0.9 W (37 mA)



0.6 W (25 mA)

Max. current of the induction coupler

>100 cd

>  35 cd

>  35 cd

>  35 cd

 >  35 cd

~ 100,00 hours

acc. to manufacturer's data

+/- 7.5 °

IP 68 (sealed electronics)

T-Connection or serial connection

Screws or

2-component adhesives

LEDs protected against chemical and mechanical impacts by soft glass

Módulo 100

Light-emitting Modules

Módulo 220

SWAROLINE

SWAROLINE ILP

SWAROLINE IHP

Wired Module

Inductively Coupled Module

Control Unit

Identical Control Unit for Inductive and Wired Modules

SWAROCONTROL MINI / DUO

SWAROCONTROL IHP

SWAROCONTROL iXP

Control Unit Suitable for Mounting on Top Hat Rails

Power Supply and Control Unit Executed Separately

Functions

Continuous Illumination

Flashing

Running Light

Gradually Increasing Illumination

Gradually Decreasing Illumination

Day / Night Dimming

Brightness Adjustment

Module Feedback

System Power Supply

2,000 m Length Power Supply

Functional Extra-low Voltage < 60 V DC

EMC Tested

Potential-free Contacts to Control the Light-emitting Modules

Electronically Compensated Line Losses

Without Resonant Circuit Adjustment (e. g. via Compensator Devices)

Data Communication

Assignment of Unique Address for Each Module

Feedback from the Entire Line

Feedback from Individual Induction Couplers

Optional integration of Sensors into the Same Power Supply Route

Status Feedback from the Control Unit to the Upper-level Control

Feedback from Individual Modules

Cyclic Module Query

Installation

Easier Installation into a Narrow Slot through Induction Coupler

Bar-type Induction Coupler

SWAROLINE XP

SWAROLINE iXP

Vertical and Horizontal Induction Coupler

Induction Coupler

T-Connector HD, IP 68

"Standard" Strands for Wiring

Facilitated Error Search, Power Supply with DC

Assignment of Flexible Module Addresses

Assignment of Fixed Module Addresses

Connection to Tunnel Techlogy

Feedback from the Control Unit via Potential-free Contacts

Profibus DP y Conexión LAN Disponible en la Unidad de Control

Control through RS232

Wired light-emitting modules

Light-emitting modules and a grid of decentralized low power inductive generators

Wired light-emitting module with enhanced functionality

Light-emitting modules, increases functionality, and inductive power transferand control using a centralized high -power inductive generator

One or two way light-emitting modules, enhanced functionality, two way communications and monitoring of the modules, decentlized low power inductive generators

For tunnel lengths up to 2,000 m, the iXP system comes packaged with unprecedented performance, allowing extreme module and outstanding functionality, because of the decentralized low power inductive generators of the SWAROLINE ILP and iXP systems electromagnetic interactions to other systems installed in the tunnel, e.g. car-countingor fire detection systems are avoided.
