SWAROTUBE
Innovative LED Lighting System for Roads, Streets, Tunnels and Industrial Facilities
-
NTRODUCTION
SWAROTUBE is a new radical approach in functional lighting with high-power LEDs: With its crystal glass optics and optimized radiation geometrics in high-quality aluminum housing, SWAREFLEX ushers in a new era of indoor and outdoor illumination as well as tunnel lighting. Already today the system allows for luminous efficacies of 140 lm per watt (system output). The high system efficiency, low energy consumption, the low maintenance, the use of recyclable components and the long service life underline the sustainability of this solution. SwaroTube is suitable for multiple applications.
-
APPLICATION AREAS
+ Road Tunnels
+ Stations and Platforms
+ Urban and Interurban Streets and Roads
+ Parking Areas

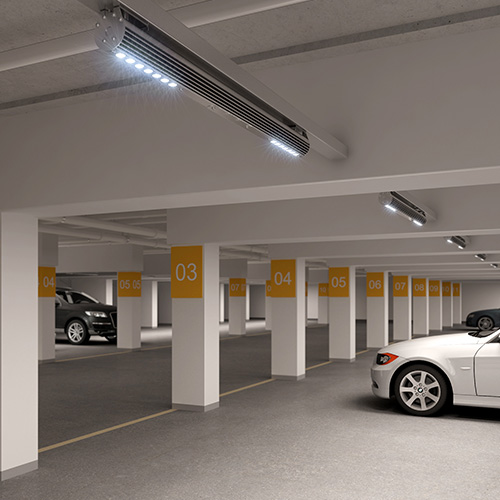

+ Multi-story Parking and Underground Parking
+ Event- and Exhibition Halls
+ Public Buildings
+ Industrial buildings and compounds
+ Stadiums
+ Logistics and Shipping Centers
+ Office Buildings
-

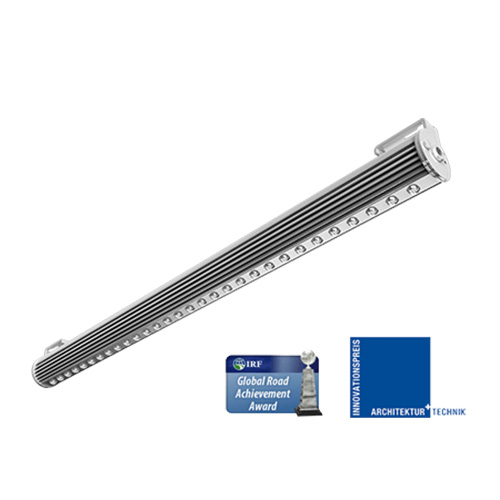

AWARDS
In 2011, the International Road Federation awarded Swareflex the "Global Road Achievement Award" in the category "Technology / facilities and production" for its product SWAROTUBE. In 2012 SWAROTUBE was bestowed with the "Innovation Award Architecture and Technology" of the journals AIT and xia Intelligent Architecture. The innovative LED lighting concept for the parking garage “THE SQUAIRE” at Frankfurt Airport, realized with SWAROTUBE, was awarded the Fraport Energy Award 2012.
MODULAR SYSTEM
AREA OF APPLICATION:
TUNNEL
AREA OF APPLICATION:
ROAD
AREA OF APPLICATION:
INDUSTRY
Aluminium Profile
Length
Material
Glas lenses
SWAROLENS A01
C0: 80˚ C90: 132˚
C0: 100˚ C90: 143˚
28 x 20x 11 mm
Optimized for parking lighting
SWAROLENS A02
C0: 150˚ C90: 73˚
C0: 157˚ C90: 93˚
38,8 x 22,6 x 11 mm
Optimized for street lighting
SWAROLENS A03
C0: 137˚ C90: 98˚
44 x 29 x 15 mm
Optimized for tunnel lighting
SWAROLENS A04
C0: 105˚ C90: 55˚
33 x 30 x 18 mm
Optimized for airport apron lighting
SWAROLENS A05
C0: 144˚ C90: 73˚
35 x 21,8 x 11,8 mm
Optimized for tunnel lighting wall installation
SWAROLENS A06
C0: 152˚ C90: 51˚
30 x 19 x 13 mm
Optimized for street lighting
SWAROLENS E01
C0: 147˚ C90: 122˚
C0: 122˚ C90: 133˚
30 x 19 x 13 mm
Optimized for tunnel lighting
SWAROLENS E02
C0: 127˚ C90: 157˚
32 x 25 x 9 mm
Optimized for parking garage lighting
SWAROLENS E03
C0: 140˚ C90: 93˚
35 x 23,9 x 10,4 mm
Optimized for tunnel lighting
1-reihig hoch
1-reihig nieder
1-reihig nieder
1-reihig nieder
400 - 1500 mm
silver oder black anodised
Parking Area Haulage Firm Unterer
Tunnel Szenario
Road Szenario
Seehoftunnel Achenkirch
Pfändertunnel
Kö-Bogen Tunnel
Multi-storey Parking "The Squaire"
Tunnel Szenario
OBI DIY STORE
Underpass in Turkey
Kö-Bogen Tunnel
Pfändertunnel
Parking Area Haulage Firm Unterer
Seehoftunnel Achenkirch
Kö-Bogen Tunnel
Airport Szenario
Tunnel Szenario
Child Care Center Dachau
SWAROTUBE is a versatile and efficient LED lighting system for various applications such as tunnels, industrial buildings, parks, streets and traffic spaces in urban areas or airports. It consists of different housing profiles, which can be combined with all SWAREFLEX PRECISION crystal optics [link to Precision Products]. Depending on the application housing, mounting system, LEDs, electronics and lens optics will be coordinated. The combination of these building blocks makes for bespoke lighting solutions
Advantage at Glance
+ Exact radiation geometries thanks to the vast array of crystal glass optics
+ Highly resistant against environmental influences like solar radiation, emissions, salts and humidity
+ Low maintenance
+ Suitable for machine cleaning
+ High energy efficiency
+ Continuous brightness control
+ Highly efficient optical system (no need for glass pane thanks to crystal glass optics)
+ Possibility of separation of electronic components from luminaire
SWAROLENS S02
C0 / C90: 84˚
C0 / C90: 104˚
Ø 25 x 13 mm
Optimized for interior lighting
Child Care Center Dachau
OBI DIY STORE

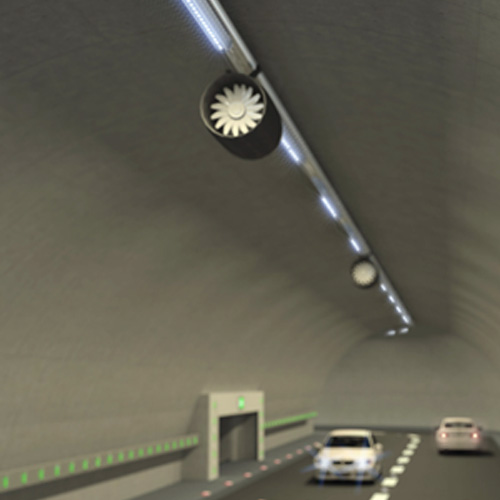

Swareflex‘ newly developed tunnel lighting SWAROTUBE T stands out for its homogeneous light distribution and is completely glare-free. With this solution can be achieved a longitudinal uniformity of over 80%. This is well above the standard requirements and means that there are no visible light and dark zones more. The uniform white LED lighting makes for a bright and generous atmosphere in the tunnel and helps easy recognition of obstacles, hazardous areas or other vehicles. Optical irritations are prevented, the driver feels more relaxed, the sense of security is increased.
SWAROTUBE T
Innovative LED lighting system for tunnel lighting
1
+ High energy efficiency
+ Maximum reliability
+ Savings in energy and maintenance costs
+ Outsourced electronic components
+ Swarovski special glass optics for maximum light transmission
+ Optimized lighting (no light / dark cycle)
System Design
The system design allows for the electronic components to be placed outside the housing, for example in a wiring closet. The luminaire itself, consisting of heatsink, PCB, LED and crystal glass lens can be mounted (on the tunnel ceiling) with a simple and secure attachment mechanism on a dedicated rail. All electronic devices are therefore accessible at all times without need to shut down traffic in the tunnel.
The luminaire is protected by the crystal glass optics against mechanical and chemical influences, such as the aggressive tunnel atmosphere, and can be cleaned by machine. The properties of the crystal glass optics make for a durably high light transmission and eliminate the need for an additional cover panel, thus adding to the system efficiency.
SWAROTUBE can be integrated into feedback systems, regulating and control circuits of modern tunnel systems.
Tunnel entrance luminaire
The tunnel entrance area requires the driver’s increased attention. By slowly lowering the luminance the driver’s eye can gradually get accustomed to the light conditions in the tunnel. The intelligent control SWAROCONTROL allows continuous tracking of the luminance at the outdoor brightness level, a distinct advantage over conventional tunnel lighting . With high brightness in the outdoor area very high luminance is also required in the tunnel entrance. The powerful SWAROTUBE TE was conceived for this purpose with a luminous flux of up to 20,000 lumens. With the asymmetric radiating crystal glass optics A03 [ link to lens A03 ] it directs the light output precisely in the counter-jet principle to the road. Previously a variety of conventional lighting was necessary in the entrance area to provide the necessary light flow. SWAROTUBE is the first LED product on the market to meet these high standards.
-

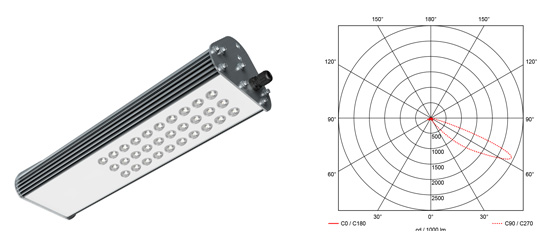

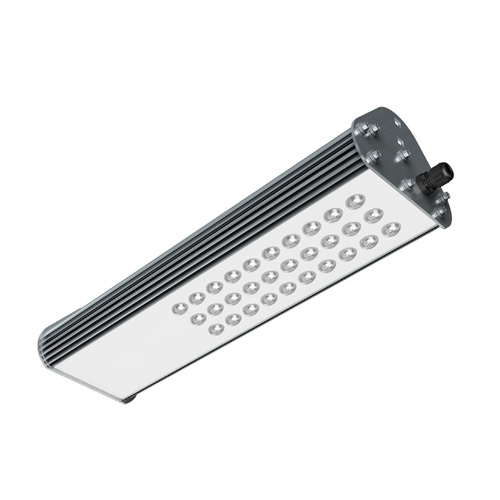

LUMINAIRE FOR TUNNEL ENTRANCE AREAS - 6.600 LM > >
.jpg)
Articel Number
10400 / 00 / 001 / A03_NW_002
Measurements
623 x 236 x 126 mm
Number of LEDs
30
LED colors
4,500 K
Materia
anodised aluminium for improved heat dissipation,
highly nonflammable
Permissible Operating Voltage of LEDs
2,76 V / LED
Lighting Power of LEDs
56 W (650 mA)
Luminous Flux of LED
6.600 lm
Service Life of LEDs
~80.000 h (L70)
Directional Characteristic
asymmetric, lens A3
Impact Resistance
IK06, no additional cover required
Protection Class
IP 66
Safety Class
SK 1 - device with connected protective conductor
Connection Technology
several wiring versions according to
document SwaroTube wiring
Control.
external power supply
Installation
several fastening versions according to document
SwaroTube assembly robotics
Proper disposal
electronic waste respectively stainless steel recycling
-

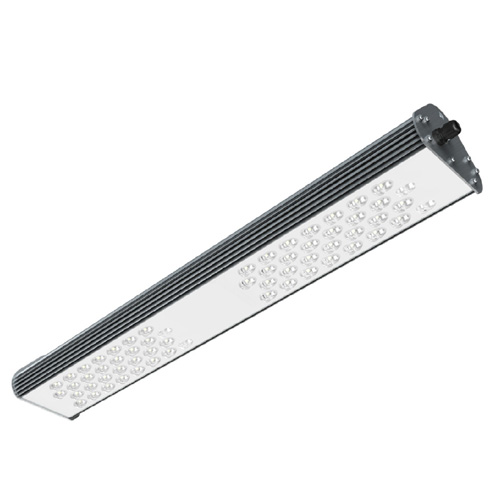

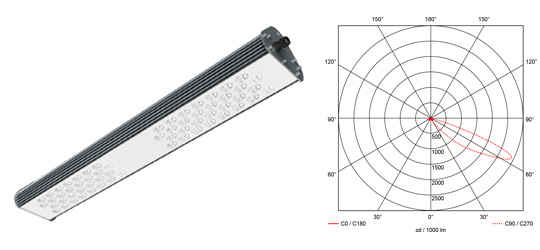

LUMINAIRE FOR TUNNEL ENTRANCE AREAS - 20.000 LM > >
Articel Number
10400 / A03_NW_001
Measurements
1,100 x 236 x 126 mm
Number of LEDs
60
LED colors
4,500 K
Material
anodised aluminium for improved heat dissipation,
highly nonflammable
Permissible Operating Voltage of LEDs
2,77 V / LED
Lighting Power of LEDs
191 W (700 mA)
Luminous Flux of LEDs
20.000 lm
Service Life of LEDs
~80.000 h (L70)
Directional Characteristic
Lentes asimétricos A3
Impact Resistance
IK06, no additional cover required
Protection Class
IP 66
Safety Class
SK 1 - device with connected protective conductor
Connection Technology
several wiring versions according to
document SwaroTube wiring
Control
external power supply
Installation
several fastening versions according to document
SwaroTube assembly robotics
Proper disposal
electronic waste respectively stainless steel recycling
-

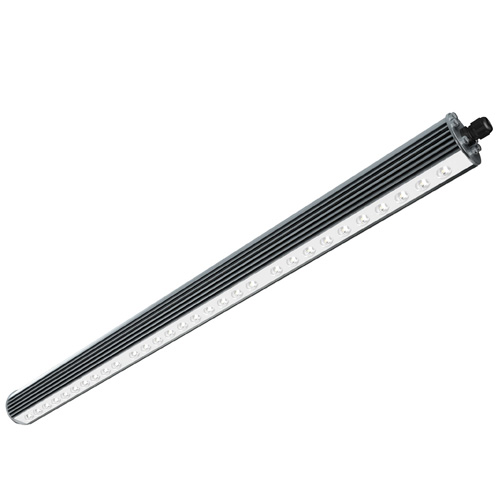

LUMINAIRE FOR TUNNEL INTERIOR ZONE - 6.670 LM > >
Articel Numbe
10100 / E01_NW_007
10100 / E01_NW_008
10100 / E01_NW_009
Measurements
1,100 x Ø 80 mm
Number of LEDs
30
LED colors
4,500 K
Material
anodised aluminium for improved heat dissipation,
highly nonflammable
Permissible Operating Voltage of LEDs
2,77 V / LED
Lighting Power of LEDs
58 W (700 mA)
Luminous Flux of LEDs
6.670 lm
Service Life of LEDs
~80.000 h (L70)
Directional Characteristic
symmetric, lens E1
Impact Resistance
IK06, no additional cover required
Protection Class
IP 66
Safety Class
SK 1 - device with connected protective conductor
Connection Technology
several wiring versions according to
document SwaroTube wiring
Control.
SwaroControl Tube iREG
Installation
several fastening versions according to document
SwaroTube assembly robotics
Proper disposal
electronic waste respectively stainless steel recycling
-

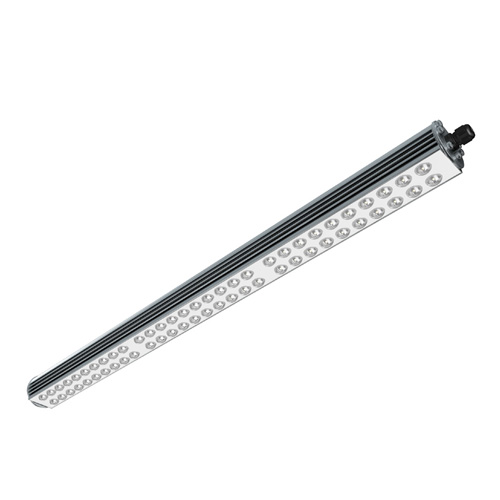

LUMINAIRE FOR TUNNEL INTERIOR ZONE - 13.540 LM > >
Articel Number
10200 / E01_NW_002
10200 / E01_NW_004
10200 / E01_NW_005
10200 / E01_NW_006
Measurements
1,100 x Ø 80 mm
Number of LEDs
60
LED colors
4,500 K
Material
anodised aluminium for improved heat dissipation,
highly nonflammable
Weight
4,500 K
Permissible Operating Voltage of LEDs
2,77 V / LED
Lighting Power of LEDs
117 W (700 mA)
Luminous Flux of LEDs
13.540 lm
Service Life of LEDs
~80.000 h (L70)
Directional Characteristic
Lentes simétricos E01
Impact Resistance
IK06, no additional cover required
Protection Class
IP 66
Safety Class
SK 1 - device with connected protective conductor
Connection Technology
several wiring versions according to
document SwaroTube wiring
Control.
SwaroControl Tube iREG
Installation
several fastening versions according to document
SwaroTube assembly robotics
Proper disposal
electronic waste respectively stainless steel recycling

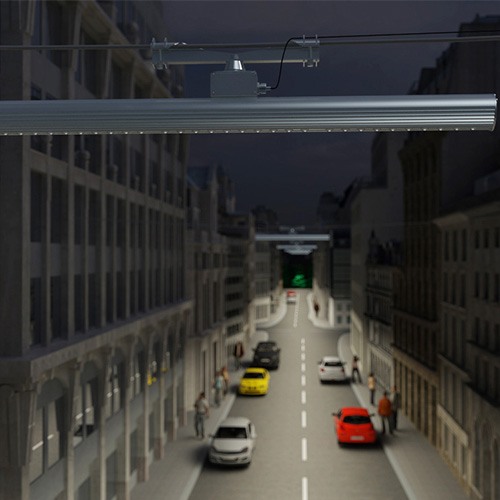

For reasons of sustainability and energy efficiency more and more cities and municipalities are upgrading their streets and traffic areas to LED-based solutions. Benefits include reduced energy costs, reduced maintenance costs, as well as easy light control. SWAROTUBE S satisfies these requirements and offers at the same time a high-quality lighting design to complement the cityscape. The crystal glass optics provide permanent protection against harmful environmental influences. SWAROTUBE S is available in different variants, such as pole-top light, rope light or side-entry lamp.
SWAROTUBE S
Innovative LED Street Light
+ High reliability
+ Low energy and maintenance costs
+ High value lighting design to complement the cityscape
+ Swarovski crystal optics
+ Longitudinal or transverse mounting
-

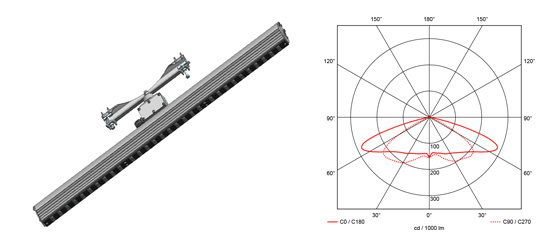

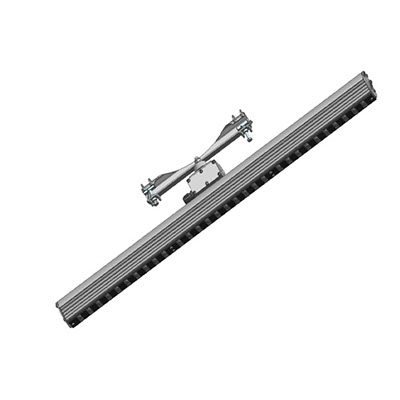

WIRE LUMINAIRE FOR STREET LIGHTING - 6.160 LM > >
Articel Number
10100 / E01Q_NW
Measurements
1,100 x Ø 80 mm
Number of LEDs
60
LED colors
4,500 K
Material.
anodised aluminium for improved heat dissipation,
highly nonflammable
Weight
6 Kg
Permissible Operating Voltage of LEDs
2.8 V / LED
Lighting Power of LEDs
42 W (500 mA)
Luminous Flux of LEDs
6.160 lm
Service Life of
LEDs
~80.000 h (L70)
Directional Characteristic
symmetric, lens E01
Impact Resistance
IK06,no additional cover required
Protection Class
IP 66
Safety Class
SK 1 - device with connected protective conductor
Connection Technology
several wiring versions according to document
SwaroTube wiring
Control.
internal power supply
Installation
wire mounting
Proper disposal
electronic waste respectively stainless steel recycling
-

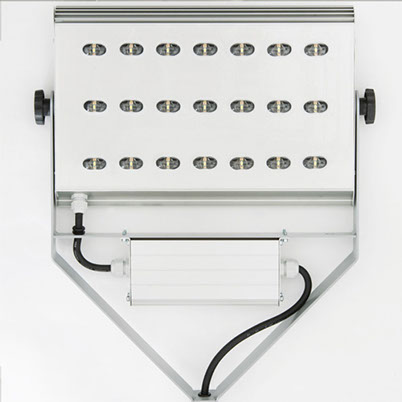

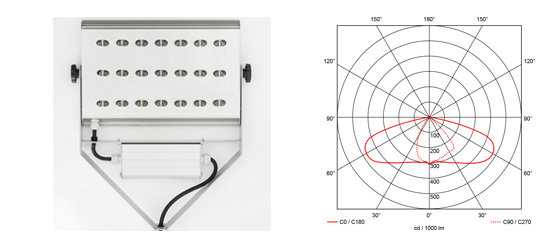

POLE MOUNTED LUMINAIRE FOR STREET LIGHTING - 6,000 LM > >
Articel Number
10300 / A02_NW_001
Measurements
440 x 440 x 58 mm
Number of LEDs
21
LED colors
4,500 K
Material
extruded aluminium
Weight
9 Kg
Permissible Operating Voltage of LEDs
2.77 V / LED
Lighting Power of LEDs
10 W (920 mA)
Luminous Flux of LEDs
6.000 lm
Service Life of
LEDs
~50.000 h (L70)
Directional Characteristic
asymmetric, lens A02
Impact Resistance
IK06, no additional cover required
Protection Class
IP 66
Safety Class
SK 1 - device with connected protective conductor
Connection Technology
several wiring versions according to document
SwaroTube wiring
Control
integrated power supply
Installation
several fastening versions according to document
SwaroTube assembly robotics
Proper disposal
electronic waste respectively stainless steel recycling

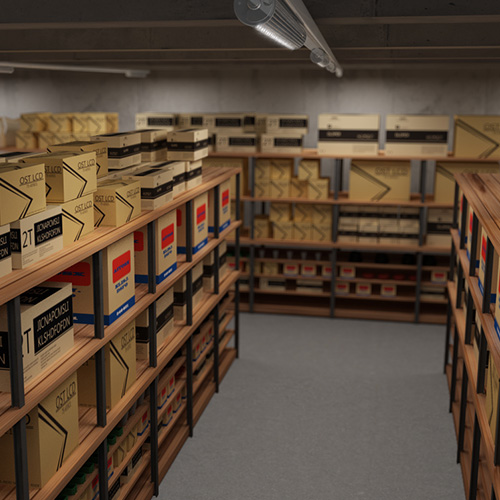

Due to its sustainable and energy efficient design, SWAROTUBE I is the ideal lighting solution for warehouses and production halls but also for wholesale and retail buildings. During the development of the solution the focus was put on high luminancies as well as true color product and material display. At the same time SWAROTUBE I provides glare-free lighting. Employees and customers will feel comfortable, which can have a positive impact on working productivity or buying behavior.
SWAROTUBE I
Innovative LED Lighting System for Industrial and Commercial Sites
+ Maximum reliability
+ Low energy consumption
+ Reduction of maintenance costs
+ Glare-free lightning
+ Efficient Swarovski special glass lenses
+ True color lighting

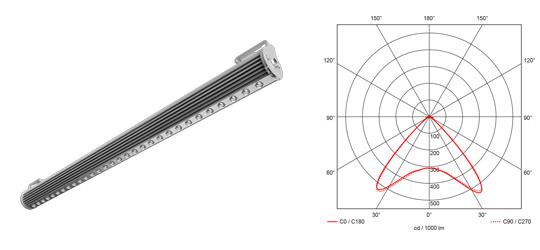

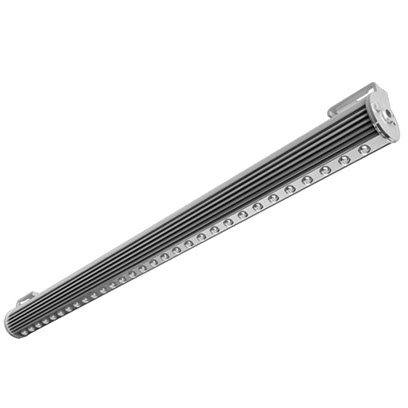

SWAROTUBE LUMINAIRE - 5.500 LM > >
Articel Number
10100 / S02_NW_005
Measurements
1,100 x Ø 80 mm
Number of LEDs
30
LED colors
4,500 K
Material
anodised aluminium for improved heat dissipation,
highly nonflammable
Weight
5,5 Kg
Permissible Operating Voltage of LEDs
2.8 V / LED
Lighting Power of LEDs
51 W (500 mA)
Luminous Flux of LEDs
5.500 lm
Service Life of
LEDs
~80.000 h (L70)
Directional Characteristic
rotationally symmetric, lens S02
Impact Resistance
IK06, no additional cover required
Protection Class
IP 66
Safety Class
SK 1 - device with connected protective conductor
Connection Technology
several wiring versions according to document
SwaroTube wiring
Control
internal power supply 0-10 V interface
Installation
several fastening versions according to document SwaroTube
assembly robotics
Proper disposal
electronic waste respectively stainless steel recycling
