SWAROTUBE 3.0
Innovative LED Lighting System for Airports and Industrial Facilities
INTRODUCTION
The high performance module system SWAROTUBE 3.0 provides large volumes of luminous flux. It is suitable for all applications that require large mounting heights and high luminous flux. The light distribution of the modules can be freely defined. All types of SWAREFLEX PRECISION special glass optics are available for selection and provide precise light control, high system efficiency and resistance against mechanical and chemical influences. The heat dissipation is carried out by the aluminum core so that the modules can be integrated independently from the housing. In combination with the SWAROTUBE 3.0 housing the cooling capacity increases significantly, making larger luminous flux quantities possible.
Service life of the LEDs is 80,000 hours. The protection class IP 66 makes the system suitable for both indoor and outdoor applications. A wide range of mounting options guarantees easy and fast installation.
APPLICATION AREAS
+ Lighting of large areas
+ High pole lighting
+ Hall lighting
+ Airfield lighting
+ Industrial Buildings and Areas
+ Event and Exhibition Halls
+ Stadiums
+ Logistics and Shipping Centers
+ Parking Areas
HIGHLIGHTS
+ High Output technology: supplies large quantities of luminous flux
+ Size, output and radiation modular
+ Aluminum core can be mounted independent of housing
+ Modules are multiplicable
+ Easy plug-in connectors between the modules
+ Variable light distribution: all Swareflex Precision lenses available
+ IP 66 protection class
+ Highly resistent against environmental impacts like sunlight, exhaust, salts and
humidity
+ Suitable for mechanical cleaning
+ High energy efficiency
+ Elimination of glass cover thanks to precision glass optics: increase in efficiency
+ Separation of control units and luminaires possible
+ All advantages of Swarovski crystal optics
MODULAR SYSTEM
APPLICATION AREA:
AIRPORT
APPLICATION AREA:
INDUSTRY
CONTROL,MEASUREMENT AND
MONITORING
Modules
3 x 5
15 LEDs
3 x 5
15 LEDs
6 x 5
30 LEDs

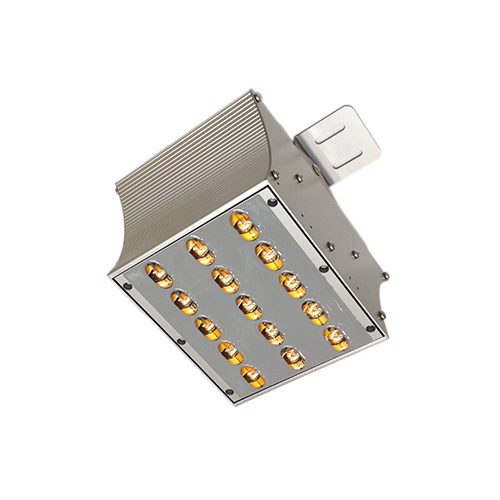

The modular system SWAROTUBE 3.0 consists of an aluminum body, including PCB and LEDs, which can be combined with any SWAREFLEX PRECISION crystal optics. The smallest unit consists of one LED point and may be be multiplied as desired. The aluminum core serves as heat sink and can be screwed to existing profiles or housing,It is available either with a matching case or without any additional housing to be mounted directly. The combination of these building blocks makes for customized lighting solutions for a large variety of applications. The mounting of the modules is via screw connection.
Measurements
182 x 202 x 32 mm
364 x 202 x 32 mm
182 x 404 x 32 mm
546 x 202 x 32 mm
182 x 606 x 32 mm
Material
Anodised Aluminium
Glas lenses
SWAROLENS A03
SWAROLENS A04
SWAROLENS A05
C0: 137˚ C90: 98˚
44 x 29 x 15 mm
Optimized for tunnel lighting
SWAROLENS A06
C0: 105˚ C90: 55˚
33 x 30 x 18 mm
Optimized for airport apron lighting
SWAROLENS E02
C0: 144˚ C90: 73˚
35 x 21,8 x 11,8 mm
Optimized for tunnel lighting wall installation
SWAROLENS E03
C0: 152˚ C90: 51˚
30 x 19 x 13 mm
Optimized for street lighting
SWAROLENS S02
C0: 127˚ C90: 157˚
32 x 25 x 9 mm
Optimized for parking garage lighting
C0: 140˚ C90: 93˚
35 x 23,9 x 10,4 mm
Optimized for tunnel lighting
C0 / C90: 84˚
C0 / C90: 104˚
Ø 25 x 13 mm
Optimized for interior lighting
30 W | 3.300 lm
44 W | 4.500 lm
60 W | 6.600 lm
88 W | 9.000 lm
90 W | 6.600 lm
88 W | 9.000 lm
30 W | 3.300 lm
44 W | 4.500 lm
60 W | 6.600 lm
88 W | 9.000 lm
90 W | 6.600 lm
88 W | 9.000 lm
30 W | 3.300 lm
44 W | 4.500 lm
60 W | 6.600 lm
88 W | 9.000 lm
90 W | 2,1 A | 9.900 lm
120 W | 3.0 A | 9.000 lm
30 W | 3.300 lm
44 W | 4.500 lm
60 W | 6.600 lm
88 W | 9.000 lm
90 W | 6.600 lm
132 W | 13.500 lm
30 W | 3.300 lm
44 W | 4.500 lm
60 W | 6.600 lm
88 W | 9.000 lm
90 W | 6.600 lm
132 W | 13.500 lm
30 W | 3.300 lm
44 W | 4.500 lm
60 W | 6.600 lm
88 W | 9.000 lm
90 W | 6.600 lm
132 W | 13.500 lm
30 W | 3.300 lm
44 W | 4.500 lm
60 W | 6.600 lm
88 W | 9.000 lm
90 W | 9.900 lm
132 W | 13.500 lm

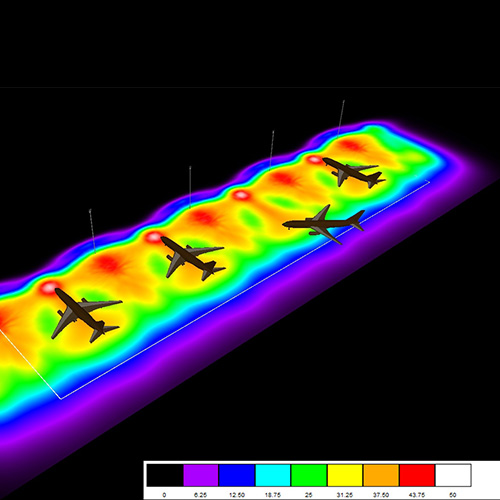

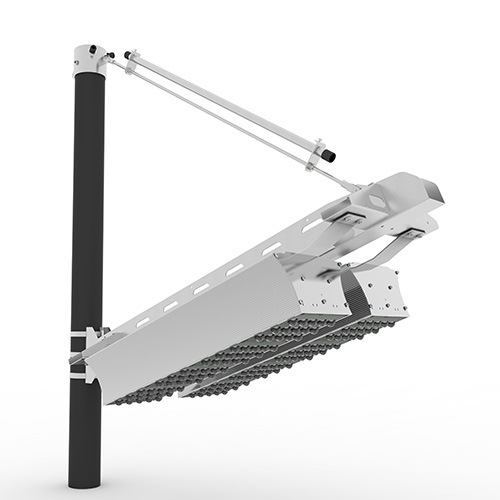

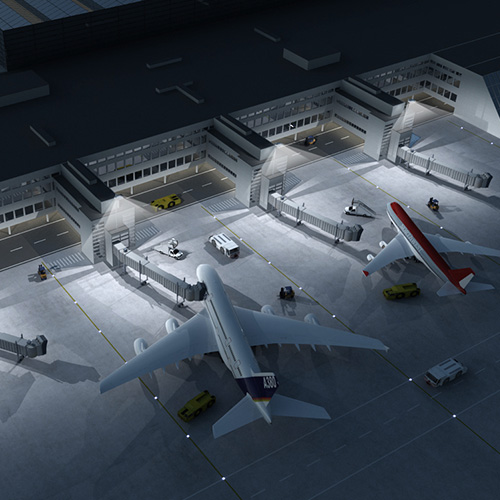

Swarotube 3.0 with its combination of high performance and reliability provides an ideal solution for apron lighting. System efficiency is increased while energy costs decrease thanks to energy-saving LED technology combined with high-precision optics made out of special glass. Low maintenance, use of recyclable materials and the long service life underline the sustainability of this solution. SWAROTUBE has a continuous drive and extremely fast response times. SWAROTUBE 3.0 is the world's first apron lighting based on LEDs that achieve the necessary uniformity and illuminance from 34m high poles. The LED modules can either be integrated into existing housing structures without additional heat sink or mounted onto existing poles including SWAROTUBE 3.0 housings.
SWAROTUBE A
Innovative LED lighting high point for flight platforms
+ Replaceable LED module
+ High output technology: provides high luminous flux quantities
+ Integration into existing luminaires possible
+ Optimal thermal management with aluminum core
+ Lenses made of Swarovski special glass
+ Outsourced electronic components possible
+ Continuous control
+ Fast response time compared to conventional solutions
1

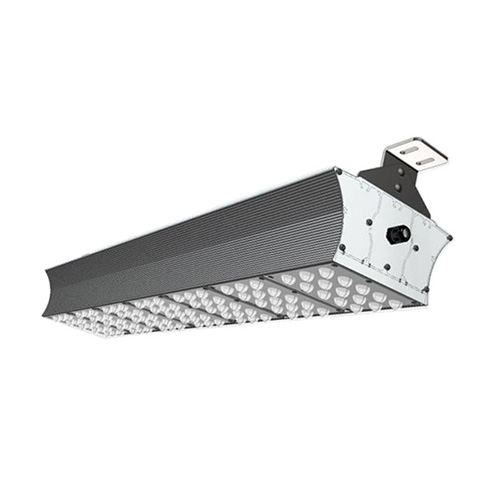

For storage and production halls as well as for wholesale and retail properties SWAROTUBE 3.0 is the perfect lighting solution thanks to their energy efficiency and easy maintenance. With its modular design, various requirements for illumination and light distribution can be met with just one system. Variable luminous flux , precise light control , and high color rendering ensure optimum lighting quality. At the same time SWAROTUBE 3.0 convinces with its glare-free lighting. Employees and customers alike experience a pleasant atmosphere resulting in a positive influence on the productivity and purchasing behavior.
A service life of 80,000 hours, high energy efficiency, easy installation and low maintenance add significant cost savings.
SWAROTUBE I
Innovative LED lighting system for commercial and industrial lighting
+ High Output Technology: provides high luminous flux quantities
+ Modular in system size, power and radiation
+ Variable light distribution
+ Service life: 80.000 hours
+ Low energy consumption
+ Low maintenance costs
+ Glare-free
+ High-quality and efficient Swarovski special glass optics
+ Farbechte Beleuchtung
Elements
3 elements: COM module, power supply and iREGs
Power Supply
Several luminaires per iREG
Luminaire
Control
Flexible arrangement (preferably in E- distribution,
Optionally in a separate distribution housing at the lighting modules)
Luminaire
Monitoring
Working condition,
Feedback from individual LED
Brightness Control
8 levels or continuous
Day / night brightness adjustment
Installation
.
Flexible installation of the iREG with the system design
(e. g. through easily accessible e- distribution for easy maintenance and avoiding any of f-times)
Features
Integration into central tunnel control via 4 –20 mA, L AN, Profibus DP or potential-free contacts (e. g. PLC)
