LEVELITE
Flush-mounted, extremely robust road studs for active traffic guidance
-
INTRODUCTION

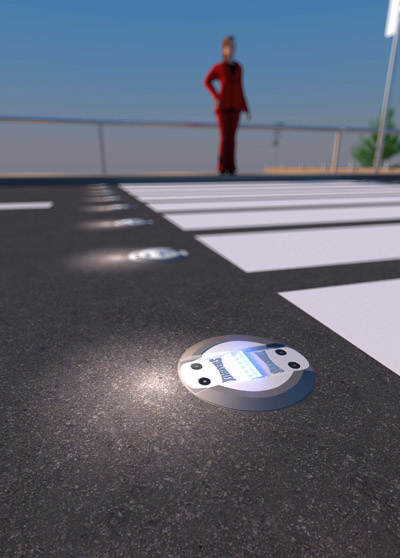

The optical guidance system consists of one or more control units which connect the modules via cable and supply them with power. Brightness and mode of operation such as flashing or running light are adjustable via the control unit. Switching between day- and nighttime intensity is triggered by an external signal or by a brightness sensor. The colors of the LEDs may be different on each side. On each side two different colors can be displayed.

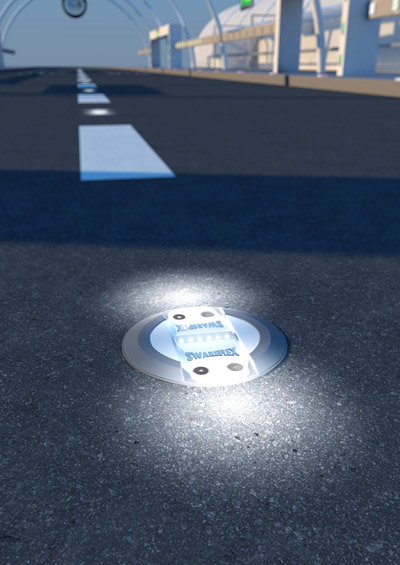

Due to the minimum height above the road surface and the unique design of the stainless steel ring SWAROLEVELITE is protected from damage by heavy haul vehicles or snow plows with scraper blades and snow chains in the direction of the light (traffic direction). If necessary, the optics can be replaced easily.
-
APPLICATION AREAS
+ Road Tunnels

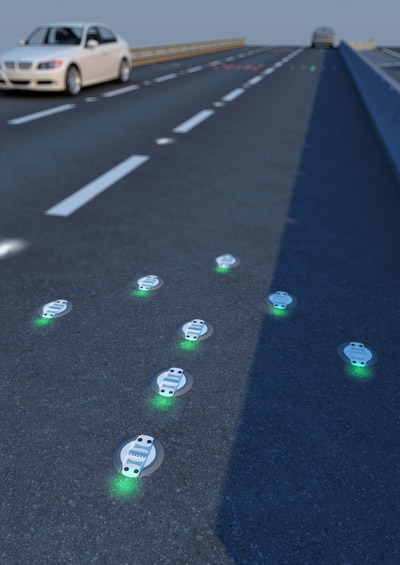

+ Highways
+ Streets and Roads
+ Parking Lots
+ Parking Garages

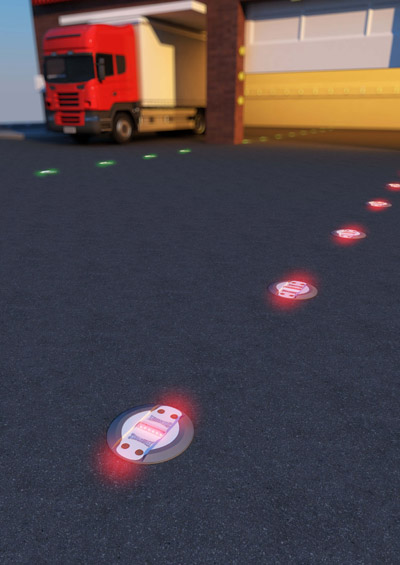

+ Industrial Sites
+ Event and Exhibition Halls Airports
+ Airports
+ Stadiums
-
HIGHLIGHTS
+ Wired active flush-mounted guidance systems
+Height of the LED module above the road level less than 3 mm
+ Light-emitting modules: stainless-steel ring protects traversable, replaceable optics
from the snow plows with steel edges; front and rear separately controlable,
individually adjustable (SWAROLEVELITE XP)
+ Optics easily replaceable without disconnecting power supply
+ Control Unit: controlling and monitoring of various functions of the light-emitting
modules (brightness, flashing, and running light)
+ Low energy consumption
+ Low maintenance, reliable, robust, durable
+ Suitable for machine cleaning
+ Combinable with SWAROLINE, SWAROEXIT and SWARORAIL
LIGHTING MODULES
FUNCTIONS OVERVIEW
PRODUCT DESIGN
Model Name
SWAROLEVELITE
SWAROLEVELITE XL
SWAROLEVELITE XP
Article Number
one-way
8511
8531
8521
two-way
8510
8530
8520
SWAROLEVELITE Modul
Dimensions
∅130 x D 60 mm
Max. height above street level: 3 mm
Number of LEDs
6 LEDs per side
3 LEDs per side
6 LEDs per side
LED colors
Material
Built-in Pot:
Salt-water resistant aluminum and engineering plastic
Optical Insert:
Special plastic with a stainless steel ring V4A (1.4571)
Flame retardant Tested according to UL 94 V0
Weight
1.7 Kg
Pressure Resistance
25 metric tons
Permissible Operating Voltage
24 V DC
48 V DC
48 V DC
Power Consumption
one-way
1.0 W (40 mA)
0.5 W (20 mA)
1.5 W
Max. 2 W
2.0 W (80 mA)
1.5 W (60 mA)
1.0 W (40 mA)
two-way
2.6 W
Average Light Intensity
100 cd
35 cd
35 cd
35 cd
70 cd
75 cd
75 cd
35 cd
35 cd
35 cd
Service Life of LEDs
∼ 100,000 horas
acc. to manufacturer's data
LED Opening Angle
+/- 7.5 º
Protection Class
IP 68 (sellado para componentes electrónicos)
Connection Technology
T-Connection or serial connection
- Flush installation of the housing by using hard casting on the road
- Fixing the luminaire inserts via a teeth lock washer
- Optical alignement to the traffic flow
- Optics easily replaceable without breaking the electrical connection
- Snow plow-proof
- LEDs protected against chemical and mechanical stress
Installation
Features
SWAROLEVELITE
Light-emitting Modules
Wired Module
SWAROLEVELITE
SWAROLEVELITE XL
SWAROLEVELITE XP
Control Unit
SWAROCONTROL MINI / DUO
SWAROCONTROL iXP
Control Unit Suitable for Mounting on Top Hat Rails
Power Supply and Control Unit Executed Separately
Functions
Continuous Illumination
Flashing
Running Light
Gradually Increasing Illumination
Gradually Decreasing Illumination
Day / Night Dimming
Brightness Adjustment
Module Feedback
System Power Supply
2,000 m Length Power Supply
Functional Extra-low Voltage <60 V DC
EMCTested
Potential-free Contacts to Control the Light-emitting Modules
Electronically Compensated Line Losses
Without Resonant Circuit Adjustment (e. g. via Compensator Devices)
Connection to Tunnel Technology
Feedback from the Control Unit via Potential-free Contacts
Profibus DP and LAN Connection Available at Control Unit
Control through RS232
Data Communication
Assignment of Unique Address for Each Module
Feedback from the Entire Line
Feedback from Individual Modules
Optional integration of Sensors into the Same Power Supply Route
Status Feedback from the Control Unit to the Upper-level Control
Assignment of Fixed Module Addresses
Cyclic Module Query
Facilitated Error Search, Power Supply with DC
Installation
"Standard" Strands for Wiring
T-Connector HD, IP 68
SWAROLEVELITE Wired light-emitting module - optimized for tunnel applications
SWAROLEVELITE XP Wired light-emitting modules: each light-emitting module individually controllable
SWAROLEVELITE XL Wired light-emitting modules with increased light intensity even visible during day time
With SWAROLEVELITE XP, the light-emitting modules can be individually activated. In addition, the control of this product design enables a bi-directional data traffic between the control unit and the light-emitting module (status report from the module).
The power is supplied via the existing electric network or via an external solar station. The low-voltage DC system used with SWAROLITE XP ensures lower susceptibility and improved response to disturbances. For tunnel and street length up to 2,000 m, the SWAROLEVELITE XL/XP modules can provide unprecedented performance out of one control unit.
