METAL BUTTON
Road Marking Studs Made of Metal with Resistant Special-Purpose Glass Elements
INTRODUCTION

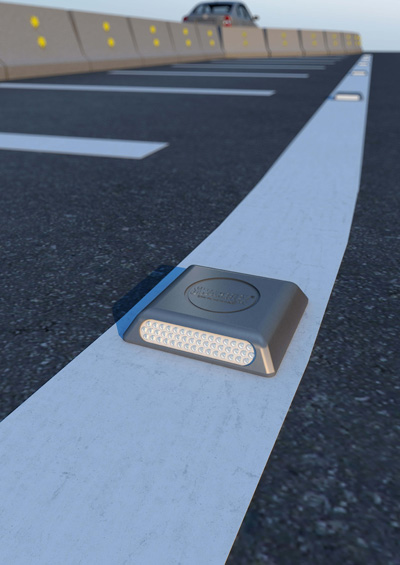

Because of the highly robust aluminum body, METAL BUTTON marker studs are especially well suited for road areas with frequent overrunning by heavy traffic. In case of poor asphalt quality and/or very high environment temperatures, the use of metal road studs with a larger footprint is recommended. The extremely resistant special-purpose glass elements are available either non tilted or as 19° tilted, to achieve even higher lighting values over large distances. Through rain and overrunning car tires, the surface of the glass elements is cleaned automatically.
All METAL BUTTON product designs meet the lighting requirements of the Standard EN 1463. Four product designs of the METAL BUTTON Classic (Art. No. 3543, 3544, 3547 and 3548) are also certified according to EN 1463-1 and EN 1463-2. METAL BUTTON Classic (Art. No. 33547 and 3548) are also fulfilling the US standard ASTM D4280.
APPLICATION AREAS
+ Roads
+ Tunnels
+ Parking Lots
+ Parking Garages
+ Inside and Outside Industrial Sites
+ Streets with High Traffic Flow
HIGHLIGHTS
+ Road marking studs with aluminum body for permanent use
+ Durable special-purpose glass elements, reflective on one side or on both sides
+ Self-cleaning via rain and overrunning car tires
+ Consistently high reflectivity
+ Easy to handle and assemble
PRODUCT FEATURES
METAL BUTTON
Classic
METAL BUTTON
Classic 19º
3543
3547
3544
3548
100 x 100 x 19.8 mm
Length of anchor bolts: 50 mm
Permanent use,
Especially for road areas with heavy traffic flows
43 per side
43 per side (19° tilted)
(Special colors on request)
Aluminium
Metal
EN 1463 - 1
EN 1463 - 2 (Testing phase 2011)
EN 1463 - 1
EN 1463 - 2 (Testing phase 2011)
Reflectivity values according to ASTM D4280
Stable and permanent installation by means of anchor bolts and two-component adhesive
Glass panels tilted at 19° for better reflection effect
High pressure resistance
Self-cleaning of special-purpose glass elements by overrunning tires
Finger-grip on request
BSI certified
High pressure load capacity
Self-cleaning of special-purpose glass elements by overrunning tires
Finger-grip on request
BSI certified
METAL BUTTON
Model Name
METAL BUTTON
Economy
METAL BUTTON
Large
Article Number
one-way
8533
5031
two-way
3534
5032
Dimensions
100 x 100 x 19.8 mm
Length of anchor bolts: 50 mm
149 x 149 x 27 mm
Length of anchor bolts: 80 mm
Number of Special- Purpose Glass Elements
Permanent use,
Especially for road areas with heavy traffic flows
Number of Special- Purpose Glass Elements
21 per side
76 per side
Colors of Special- Purpose Glass Elements
(Special colors on request)
Body Material
Aluminium
Body Colors
Metal
Standard Conformity
EN 1463 - 1
EN 1463 - 1
Installation
Stable and permanent installation by means of anchor bolts and two-component adhesive
Features
High pressure load capacity
Self-cleaning of special-purpose glass elements by overrunning tires
