SWARORAIL

Innovative Handrail Lighting System with LED Technology





  • INTRODUCTION

    SWARORAIL is an integrated handrail lighting system providing illumination and marking as well as haptic guidance on escape routes and in danger zones. Areas of application are road- and railway tunnels, industrial objects, bridges, pedestrian passages, stairways, ramps etc.

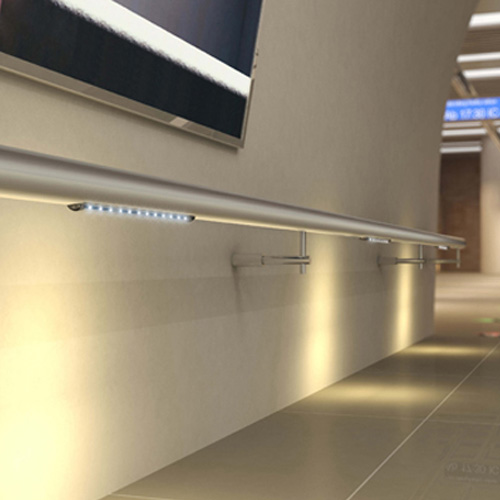

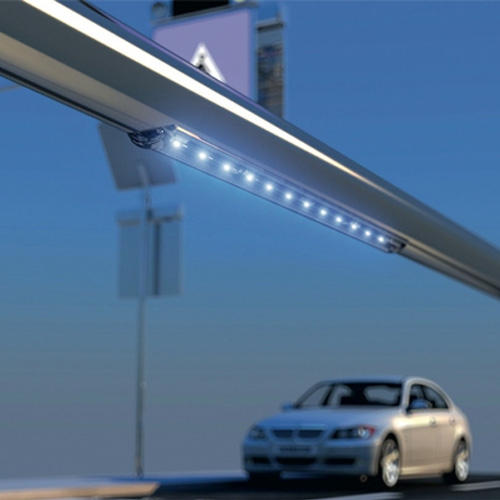

    The light modules with 12 LED s each stand out by their excellent light distribution. The waterproof molded housing with protection degree IP 68 is made out of high quality polycarbonate. This guarantees high resistance to environmental influences such as moisture, salts and other chemicals, while providing protection against vandalism. The easy -to-use snap on mechanism allows for quick and easy installation. Optionally, the light modules can be delivered with custom-made handrails made from stainless steel or plastic material.



    For use in railway tunnels the light modules can be mounted directly on the tunnel wall or on standalone pillars of approx. 95 cm in height. A supplementary installation at a height of 3.5 m height with shorter luminaire distance ensures uniform and continuous illumination of escape and rescue routes. SWARORAIL wall modules can be used with a dedicated housing as a supplement to existing, non illuminated handrails.

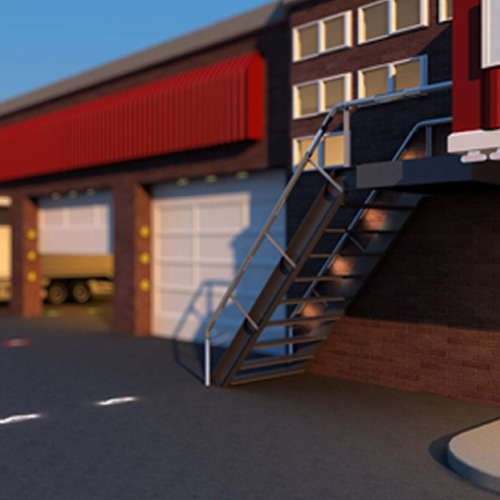

    There is a vast range of applications for SWARORAIL handrails in buildings. On stairways or ramps in particular, they provide functional lighting, discreetly blending in with the architecture.

  • APPLICATION AREAS

    + Road and Railway Tunnels

    + Stations and Platforms

    + Pedestrian and Road Bridges

    + Underpasses

    + Footpaths and Stairways

    + Parking Garages

    + Event and Exhibition Halls

    + Logistics and Shipping Centers

    + Airports

    + Office Buildings

    + Stadiums

    + Stairways and Ramps

    + Accentuation of Buildings and Places

  • HIGHLIGHTS

    Handrail with modular, integrated LED modules



    Lighting modules integrated into the handrail or single-unit installation with dedicated housing



    Homogenous lighting for escape route markings and danger zones



    Highly robust thanks to hermetically sealed electrical parts



    Easy to mount



    Low maintenance



    Suitable for machine cleaning



    High energy efficiency



    Protection against vandalism

SWARORAIL LUMINAIRE

INSERT

SWARORAIL HANDRAILS

SWARORAIL WALL MODULES

SWARORAIL COVER PROFILE

Model Mame

SWARORAIL

Luminaire Insert

Snap Version

SWARORAIL

Luminaire Insert

Screw  Version

Article Number

8901

8903

Dimensions

264 x 20 x 32 mm

Number of LEDs

12 per module

LEDs Colors

Material

Housing:

Flame retardant and self-extinguishing polycarbonate, tested according to UL 94 V0



Protection Screen:

Case grouted with soft glass, with the case also acting as the lens

Weight

140 g

Permissible Operating Voltage

24V DC

Power Consumption

2,5 W (110 mA)

Luminous Flux of

Lighting Source

105 lm

Lighting Brightness

> > 5 lx, uniform distribution of 1:4 at 1 m mounting height, a spacing of 2.5 meters between the modules, at a width of 1 meter

Service Life of LEDs

~ 100,000 hours acc. to manufacturer's data

Illumination Angle

+/- 30 °

Protection Class

IP 68 (Sealed electronics)

Connection Technologyv

T-Connection or serial connection

Installation

Snap-mechanism

Screws

Features

LEDs integrated into a highly transparent, impact-resistant  polycarbonate lens

LEDs with flexible casting made of soft glass protected against chemical and mechanical impacts

Robustness and reliability of modules and optimal thermo management thanks to hard anodized aluminum casing

Model Name

SWARORAIL

Stainless Steel Handrail

SWARORAIL

Plastic Handrail

Article Number

Project-specific

Project-specific

Dimensions

Project-specific

Number of LEDs

12 per module

LED Colors

Material

Stainless steel V2A (1.4571)

PPE-PS

Weight

Project-specific

Model Name

SWARORAIL

Wall Module in Metal

SWARORAIL

Wall Module in Plastic

Article Number

8911 (Snap version)

8913 (Screw version)

8913 (Screw version)

Dimensions

290 x 130 x 43 mm

300 x 78 x 38 mm

Number of LEDs

12 per module

LED Colors

Material

Wall module case:

Stainless Steel V4A (1.4301)

Wall module case:

Plastic Flame retardant, Tested according to UL 94 V0

Weight

1,2 kg

250 g

Model Name

SWARORAIL Cover Profile

Article Number

project specific

Dimensions

20 x 14 mm, variable length

Number of LEDs

-

LED Colors

-

Material

ABS

Weight

Dependent on lenght

Installation

Snap-mechanism
